How to Use GridBagLayout: The Applet Example Explained

Here, again, is the applet that shows a GridBagLayout in action.


Your browser can't run 1.0 Java applets, so here's a picture of the window the program brings up:

Below is the code that creates the GridBagLayout and the components it manages. (Here's the whole program. The program runs either within an applet, with the help of AppletButton, or as an application.)

protected void makebutton(String name,
                          GridBagLayout gridbag,
                          GridBagConstraints c) {
    Button button = new Button(name);
    gridbag.setConstraints(button, c);
    add(button);
}

public GridBagWindow() {
    GridBagLayout gridbag = new GridBagLayout();
    GridBagConstraints c = new GridBagConstraints();

    setFont(new Font("Helvetica", Font.PLAIN, 14));
    setLayout(gridbag);

    c.fill = GridBagConstraints.BOTH;
    c.weightx = 1.0;
    makebutton("Button1", gridbag, c);
    makebutton("Button2", gridbag, c);
    makebutton("Button3", gridbag, c);

    c.gridwidth = GridBagConstraints.REMAINDER; //end of row
    makebutton("Button4", gridbag, c);

    c.weightx = 0.0;                   //reset to the default
    makebutton("Button5", gridbag, c); //another row

    c.gridwidth = GridBagConstraints.RELATIVE; //next to last in row
    makebutton("Button6", gridbag, c);

    c.gridwidth = GridBagConstraints.REMAINDER; //end of row
    makebutton("Button7", gridbag, c);

    c.gridwidth = 1;                      //reset to the default
    c.gridheight = 2;
    c.weighty = 1.0;
    makebutton("Button8", gridbag, c);

    c.weighty = 0.0;                   //reset to the default
    c.gridwidth = GridBagConstraints.REMAINDER; //end of row
    c.gridheight = 1;                   //reset to the default
    makebutton("Button9", gridbag, c);
    makebutton("Button10", gridbag, c);
}

This example uses one GridBagConstraints instance for all the components the GridBagLayout manages. Just before each component is added to the container, the code sets (or resets to default values) the appropriate instance variables in the GridBagConstraints object. It then uses the setConstraints() method to record all the constraint values for that component.

For example, just before adding a component that ends a row, you'll see the following code:

c.gridwidth = GridBagConstraints.REMAINDER; //end of row
And just before adding the next component (if the next component doesn't take up a whole row), you'll see the same instance variable reset to its default value:
c.gridwidth = 1;                      //reset to the default
For clarity, here's a table that shows all the constraints for each component the GridBagLayout handles. Values that aren't the default are marked in bold font. Values that are different from those in the previous table entry are marked in italic font.
Component                       Constraints
---------                       -----------
All components                  gridx = GridBagConstraints.RELATIVE
                                gridy = GridBagConstraints.RELATIVE
                                fill = GridBagConstraints.BOTH
                                ipadx = 0, ipady = 0
                                insets = new Insets(0,0,0,0)
                                anchor = GridBagConstraints.CENTER

Button1, Button2, Button3       gridwidth = 1
                                gridheight = 1
                                weightx = 1.0
                                weighty = 0.0

Button4                         gridwidth = GridBagConstraints.REMAINDER
                                gridheight = 1
                                weightx = 1.0
                                weighty = 0.0

Button5                         gridwidth = GridBagConstraints.REMAINDER
                                gridheight = 1
                                weightx = 0.0
                                weighty = 0.0

Button6                         gridwidth = GridBagConstraints.RELATIVE
                                gridheight = 1
                                weightx = 0.0
                                weighty = 0.0

Button7                         gridwidth = GridBagConstraints.REMAINDER
                                gridheight = 1
                                weightx = 0.0
                                weighty = 0.0

Button8                         gridwidth = 1
                                gridheight = 2
                                weightx = 0.0
                                weighty = 1.0

Button9, Button10               gridwidth = GridBagConstraints.REMAINDER
                                gridheight = 1
                                weightx = 0.0
                                weighty = 0.0

All the components in this container are as large as possible, given their row and column. The program accomplishes this by setting the GridBagConstraints fill instance variable to GridBagConstraints.BOTH, leaving it at that setting for all the components. If the program didn't specify the fill, the buttons would be at their natural size, like this:

This program has four components that span multiple columns (Button5, Button6, Button9, and Button10) and one that spans multiple rows (Button8). In only one of these cases (Button8) is the height or width of the component explicitly specified. In all the other cases, the width of the component is specified as either GridBagConstraints.RELATIVE or GridBagConstraints.REMAINDER, which lets the GridBagLayout determine the component's size, taking into account the size of other components in the row.

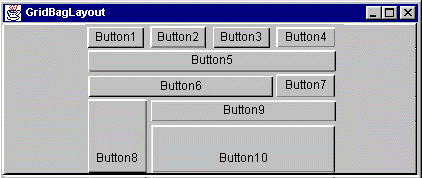

When you enlarge the window the program brings up, you'll notice that the columns stay equal in width as they grow. This is the result of each component in the first row (where each component is one column wide) having weightx = 1.0. The actual value of these components' weightx is unimportant. What matters is that all the components (and thus all the columns) have an equal weight that is greater than 0. If no component managed by the GridBagLayout had weightx set, then when the components' container was made wider, the components would stay clumped together in the center of the container, like this:

Another thing you'll notice as you enlarge the window is that the last row is the only one that gets taller. This is because only Button8 has weighty greater than zero. Button8 spans two rows, and the GridBagLayout happens to allocate all Button8's weight to the bottom-most row Button8 occupies.
