CISC 3620 Chapter 2

CISC 3620
Computer Graphics
Chapter 2

Two-D Applications

Special case of 3D (z coordinate is always 0)

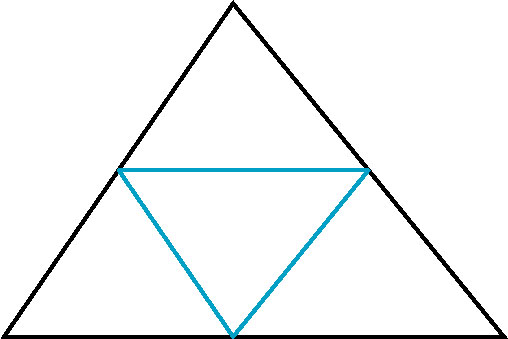

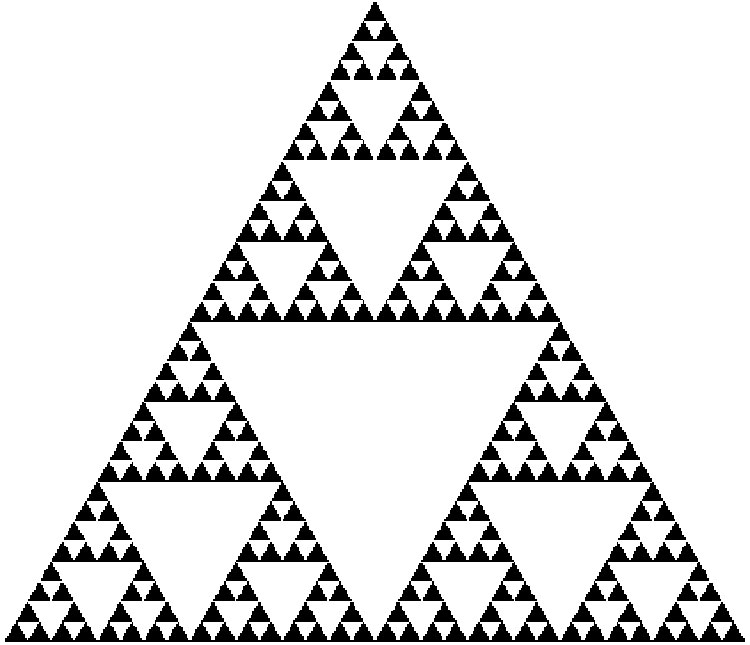

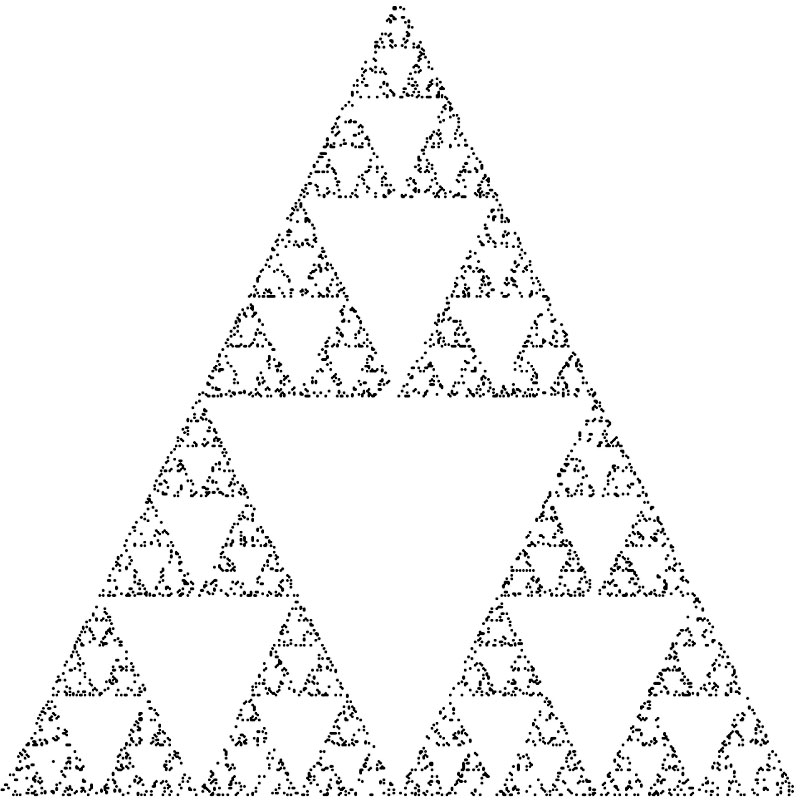

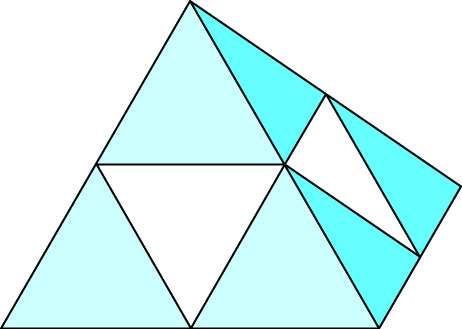

A First OpenGL Program - The Sierpinski Gasket

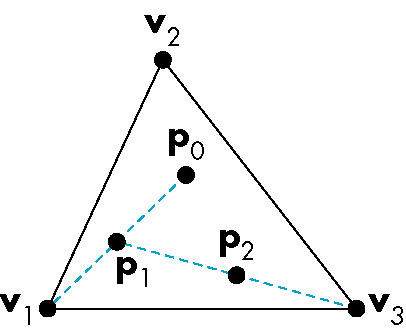

Three non collinear points (x₁, y₁, 0), (x₂, y₂, 0), (x₃, y₃, 0)) form a triangle on the z-plane.
To construct the desired image:
1. Pick an initial point (x, y, 0)
2. Randomly select one of the three vertices of the triangle
3. Find the midpoint between the selected vertex and the initial point
4. Display the midpoint
5. Set the initial point to the midpoint
6. Go to step 2

As code:

gasket(Point v1, Point v2, Point v3) {
   const int NUM_POINTS = however many points we want to generate
   Point p = random point inside triangle formed by v1, v2, v3

   for (int i = 1; i < NUM_POINTS; i++) {
      Point aRandomVertex = randomly choose one of v1, v2, v3
      Point midPoint = calculate the midpoint of aRandomVertex and p
      display(midpoint)
      p = midpoint
   }
}

Moving to an Actual Implementation

Vertex specification
Color specification
Size and position of the image
Window creation
Maintenance of the display

A C++/OpenGL Implementation of the Above

 1. #define GLUT_DISABLE_ATEXIT_HACK
 2. #include <windows.h>

 3. #include <GL/gl.h>
 4. #include <GL/glut.h>
 5. #include <stdlib.h>

 6. static void display(void) {

 7.     GLint vx[] = {100, 0, 200};
 8.     GLint vy[] = {0, 200, 200};

 9.     GLint px = 100;
10.     GLint py = 100;

11.     glClear(GL_COLOR_BUFFER_BIT);
12.     glColor3f(1.0, 0.0, 0.0);

13.     glBegin(GL_POINTS);
14.         for (GLint i = 0; i < 10000; i++) {
15.             int whichV = rand() % 3;
16.             int newPx = (px + vx[whichV]) / 2;
17.             int newPy = (py + vy[whichV]) / 2;
18.             glVertex2i(newPx, newPy);
19.             px = newPx;
20.             py = newPy;
21.         }
22.     glEnd();
23.     glFlush();
24. }

25. void init() {
26.     glClearColor(1.0, 1.0, 1.0, 1.0);
27.     gluOrtho2D(0, 500, 500, 0);
28. }

29. int main(int argc, char *argv[]) {
30.     glutInit(&argc, argv);
31.     glutInitWindowPosition(100, 100);
32.     glutInitWindowSize(500, 500);
33.     glutCreateWindow("Gasket");

34.     glutDisplayFunc(display);

35.     init();

36.     glutMainLoop();

37.     return 0;

38. }

A 'Thirty-Second' Overview of the Above

The Program Structure

Consists of:
- the usual main function (this is C++ after all)
- a graphics initialization function init (my choice of function name)
- display function, display (my choice of function name)

The Program's Excution Lifecycle

The graphics system is initialized (30)
A window is specified and created (31-33)
A display callback function is specified (6-24) and registered (34)
Other app-specific initialization is specified (25-28) and called (35)
OpenGL is left to its own devices (36)
When OpenGL is done (window is closed), the program exits (37)

Vertices

vertex - position in n-dimensional space
specified by n values -- one per dimension
- We'll be restricting ourselves to 2, 3, and 4-dimensional spaces
Used to specify the geomtric primitives points, lines, polygons, etc
Note that vertex and point are somewhat different
- vertex is a position specification; point is a geometric object
- a point is specified by a single vertex

The OpenGL `GLVertex` Function

GLVertex<n><t>[v] n -- dimensions: 2, 3, or 4 t -- type: i integer f float d double In addition, there are corresponding OpenGL types, such as GLfloat and GLint, The OpenGL types are preferred because they aid in providing portability across platforms, or ease of changing representation v -- allows specification of the vertices using an array (vector) Useful for declaring and working with point data types Each point represented as an array of n coordinates-- one per dimension We'll reimplement the gasket program in this manner below





Specifying an Object as a Sequence of Vertices

	The vertices of a single geometric object is nested between the pair of GLOpen functions GLBegin
					and GLEnd

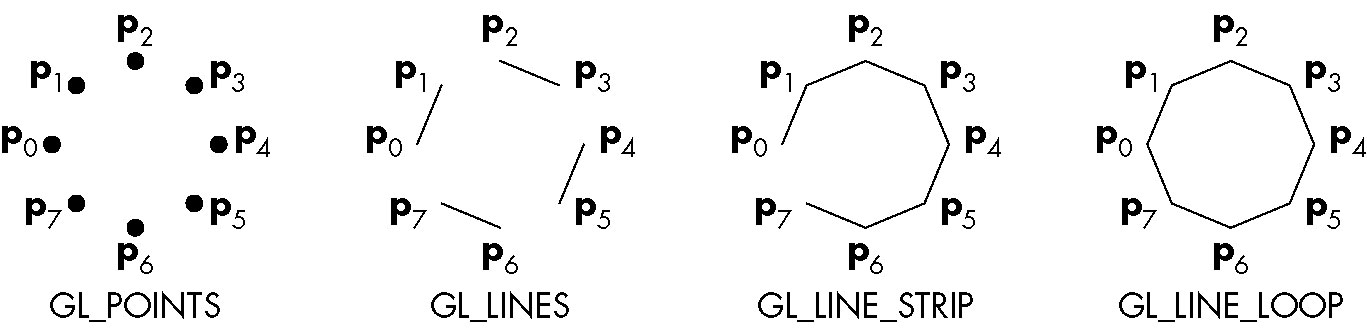

GLBegin takes as an argument the manner in which the specified vertices are, i.e., the sort of object they specify:



					GL_POINTS 	 Vertices form individual points


					GL_LINES 		 Vertices form pairwise line segments


					GL_LINE_STRIP	 Adjacent vertices are connected (polyline)


					GL_LINE_LOOP		 Same as LINE_STRIP, but sequence is closed-- i.e., last and first vertices are connected









Basic Structure of an OpenGL Program


		Create window (platform specific)

Define and register display callback function

Define and register other callback functions and registrations (keyboard and mouse events, window resizing)


The Graphics Systems vs User Interaction

	The actual graphics system is platform independent

User interaction (window management, user input) is platform-dependent


The Display Callback Function


		We'll talk more about this in Chapter 3

For the moment, we'll simply say that the function named in glutDisplayFunc is
					called everytime there is a need to redisplay the OpenGL window.


Coordinate Systems

		Device independent coordinates allows programmer to ignore
							issues related to the particular input/output device being used.

					World coordinates, object coordinates

May be represented using floating point values


Device coordinates, window coordinates,
						screen coordinates

				Correspond to actual device

Represented using integers

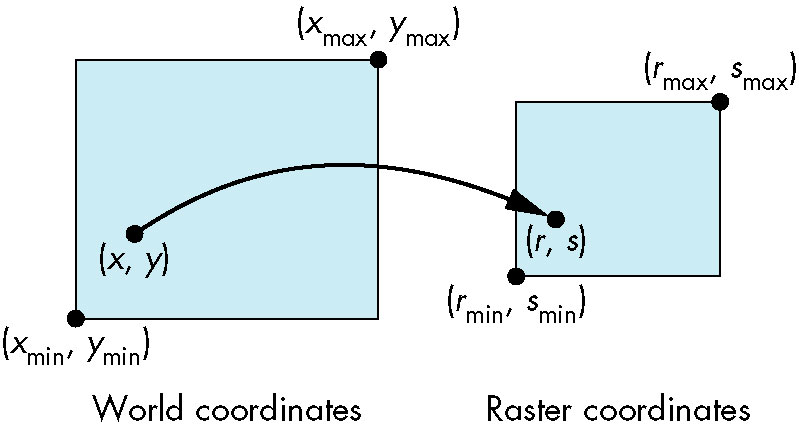

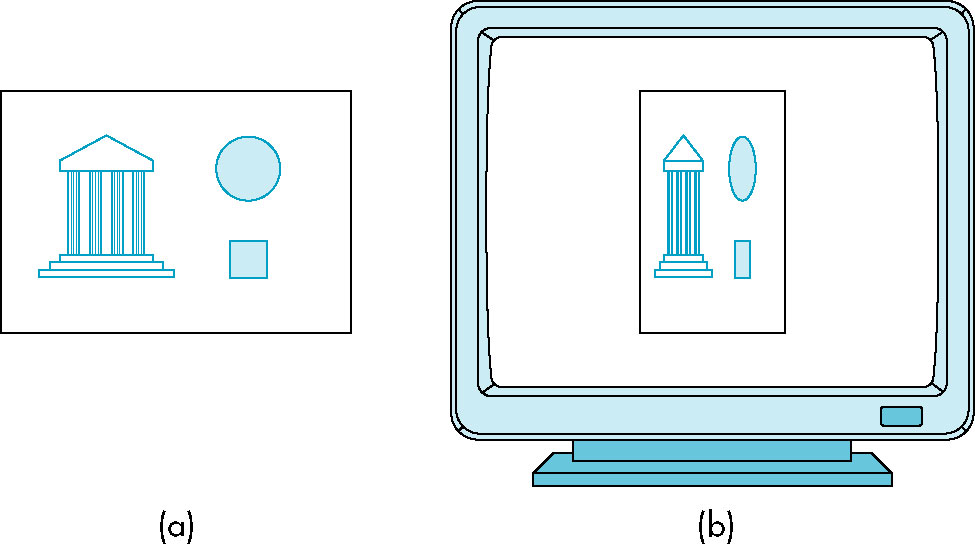

Mapping of device-independent to device coordinates




				One of the tasks of the graphics system



OpenGL API

Major Categories of OpenGL's Functions


  Primitive functions

			Low-level graphic objects: points, lines, polygons...


Attribute functions

			Control how a primitive is displayed: color, thickness
		Viewing functions

			how the camera sees the graphics 'universe'


Transformation functions

			Provides ability to transform the object: scaling, translation, rotation


Input functions

			Handles user input


Control functions

			Window management, error handling, initialization


Query functions

			Obtain information about the graphics environment



(Finite) State Machines


		A theoretical model of a machine that has a fixed number of states and changes its state
					based upon input.

The change of state is known as a transition

There is usually an initial state

Machine stays in same state until explicitly changed-- i.e., it is persistent

OpenGL may be thought of as implementing a state machine

					-- changes to its state (e.g. setting the pen color) persist until changed

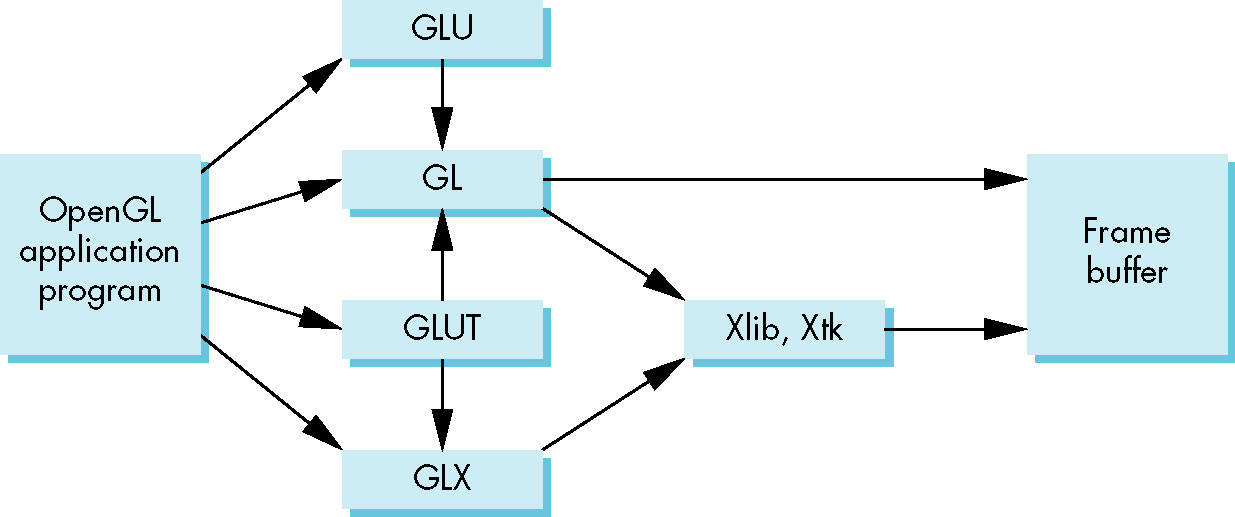

OpenGL Interface




		Main OpenGL library (GL)

				gl function prefix


OpenGL Utility Library (GLU)

				Convenience functions

Uses GL functions only

glu function prefix


GLX (unix), wgl (windows), agl (Mac)

				Windowing system (platform specific)


OpenGL Utility Toolkit (GLUT)

				common denominator of windowing/user-interaction functionality

cross-platform

event-driven

windows, mouse, keyboard, not much more




Primitives

		Geometric objects

				Specified as set of vertices

Formal specification -- can be transformed

			glBegin(type);
   glVertex*(...);
	 ...
   glVertex*(...);
glEnd();

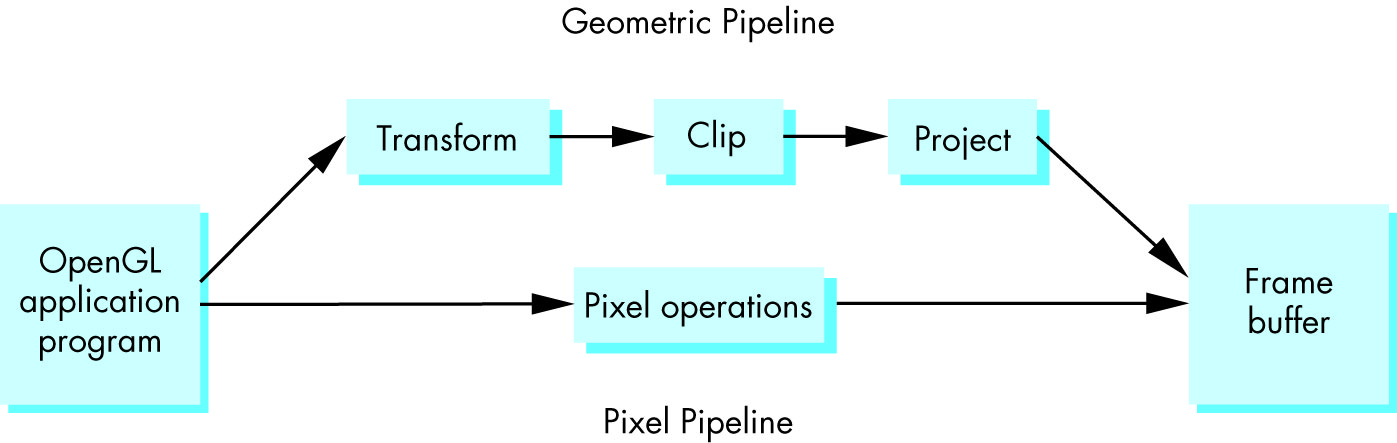

Image/raster primitives

				Essentially arrays of pixels

Cannot be manipulated like geometric objects

Separate pipeline

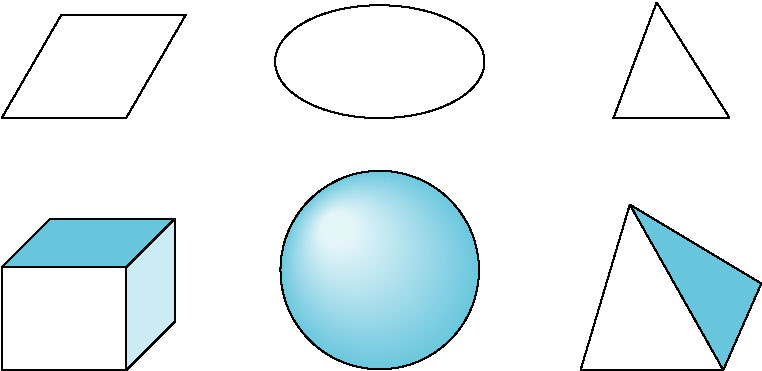

Polygons




Rendering/filling polygons quickly require that they have well-defined interiors: simple,
		convex, and flat.

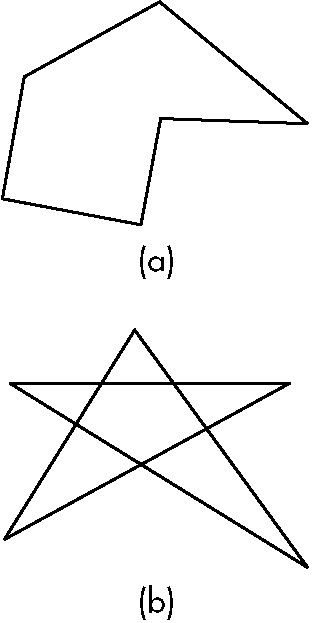

	Simple

			No edges intersect

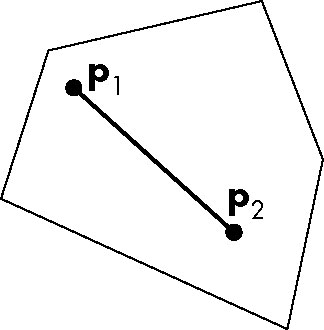

Convex

			Given two points within the objects, the line segment between them lies
						entirely within the object





In three dimensions, using triangles (which must always lie in a single plane, and thus are always flat)
				 makes rendering efficient and correct.

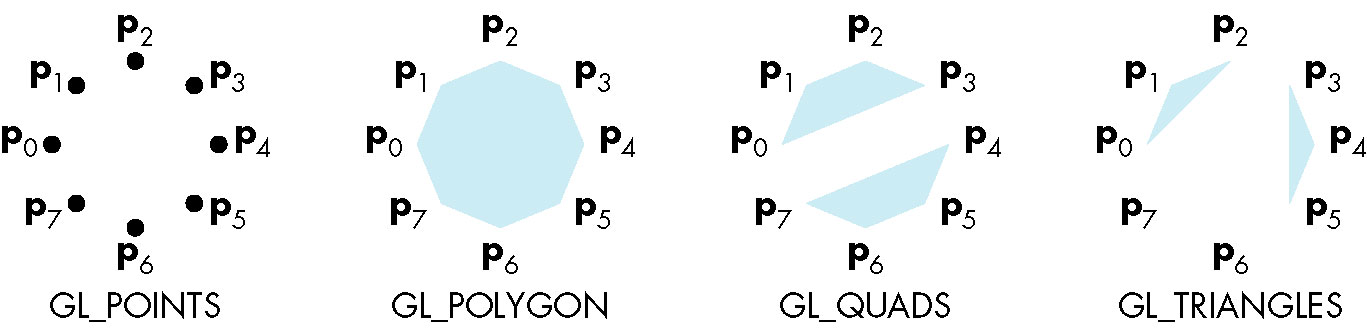

Polygons in OpenGL


	GL_POLYGON

				Similar to LINE_LOOP but defines an interior (that can be filled) as well


GL_TRIANGLES, GL_QUADS



				Convenience (and possible optimization) types of GL_POLYGON

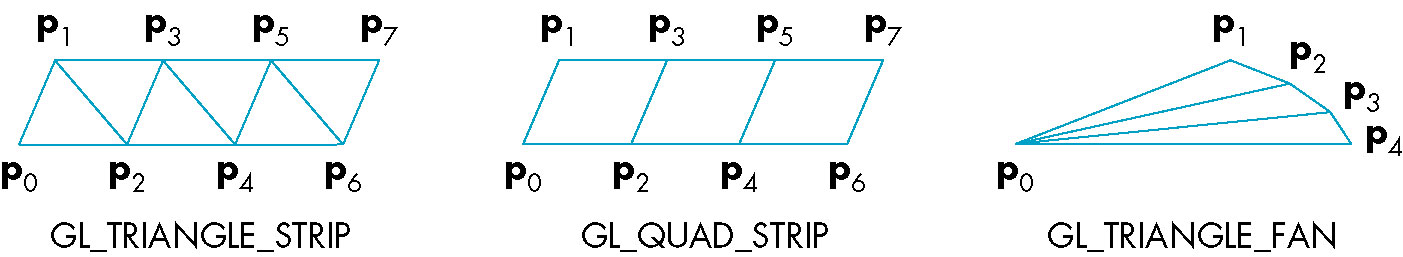

GL_TRIANGLE_STRIP, GL_QUAD_STRIP, GL_TRIANGLE_FAN




			Provides ability to form triangles or quadrilaterals that share vertices

				 		GL_TRIANGLE_STRIP

								Each additional vertex combines with previous two to form a new triangle


GL_QUAD_STRIP

								Each additional two vertices combines with previous two to form a new quadrilateral


GL_TRIANGLE_FAN

								Initial fixed point. First pair of additional vertices forms first triangle. Each additional
											vertex combines with previous and fixed point to form additional triangles.

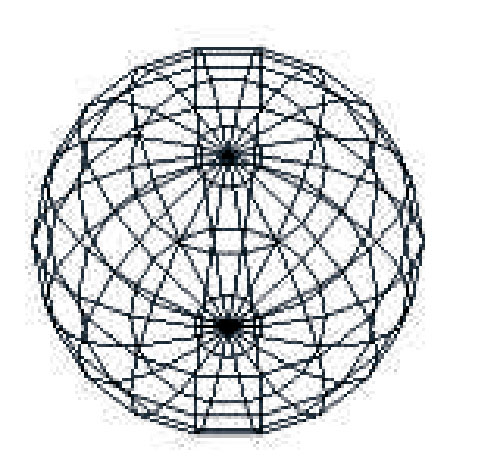

Approximating a Sphere


	An application of using quad strips and triangle fans

Subdivide surface of sphere into longitudinal and latitudinal lines (circles)




The above form a grid of quadrilaterals which we can create using QUAD_STRIPS

At the poles, we use TRIANGLE_FANS to finish off the top and bottom of the sphere


Text


		Nongraphical systems uses a hardware character generator (similar in concept to
					raster text described below).

Two basic ways of forming text

					raster - character is formed from a matrix of bits known as a bit block

								Fast transfer of characters into frame buffer (bitblt - bit block transfer)

Scaling or replicating issues


stroke

								Character is formed using vertices

No different than any other geometric object

										All the usual operation may be performed on them: filling, transformations (e.g., rotation)



Above two are analogous to vector vs raster displays



Curved Objects


	Various approaches

    	Can approximate them

    			e.g. circle using n-gon; spehere using quad and tirangles

In general, approximate a curved surface using a mesh of (convex) polygons

    					This is called a tessellation



Can use graphical function to graph the mathematical definition of a curved surface

					Use the definition to determine the defining vertices

							e.g. circle is defined via a center and a single point on circumfrence; then use mathematical
											definition to draw the circle

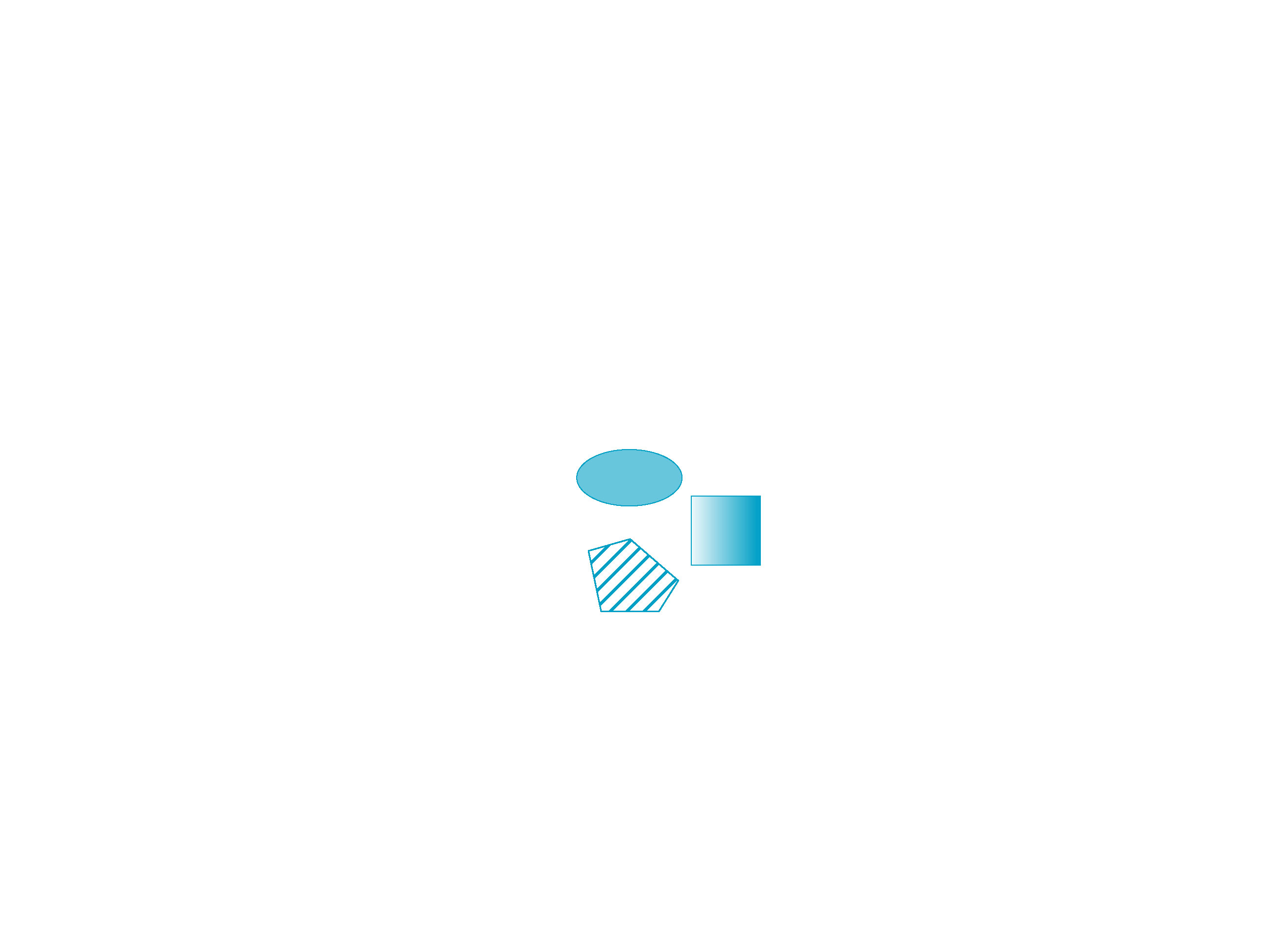

Attributes


		We've been looking at primitives -- geomtric objects, text, ...

Attributes describe how a primitive gets rendered

				Primitives are the nouns, attributes are the adjectives

Color, line style, ...

						 		 size of text vs height/width of geometric object



Immediate mode - object is rendered (sent to frame buffer) as soon as possible.

					Current state of attributes associated with object's type are applied

Object's specs are not stored anywhere in system

When display is cleared, objec'ts image disappears as well

Contrasted with use of a display file/list which maitains
								object information

									Shapes in Paint vs shapes in Word




Color

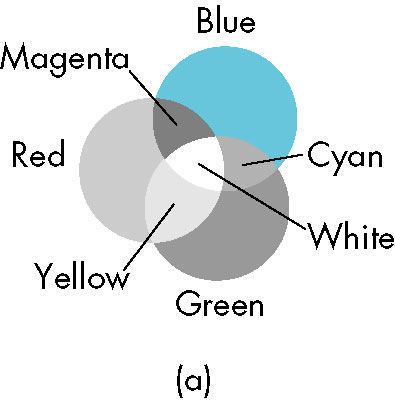

		Additive color

					Three primary colors are added to form desired color

Light is added to black to produce color

Primaries are usually red, green, blue (RGB)

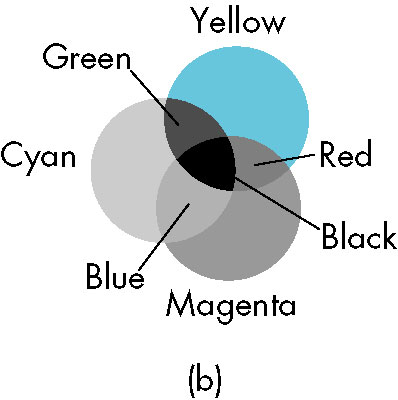

Subtractive color

					Primary colors in the form of pigments remove color from white to form desired color

Primaries are usually cyan, magenta, yellow (CMY)

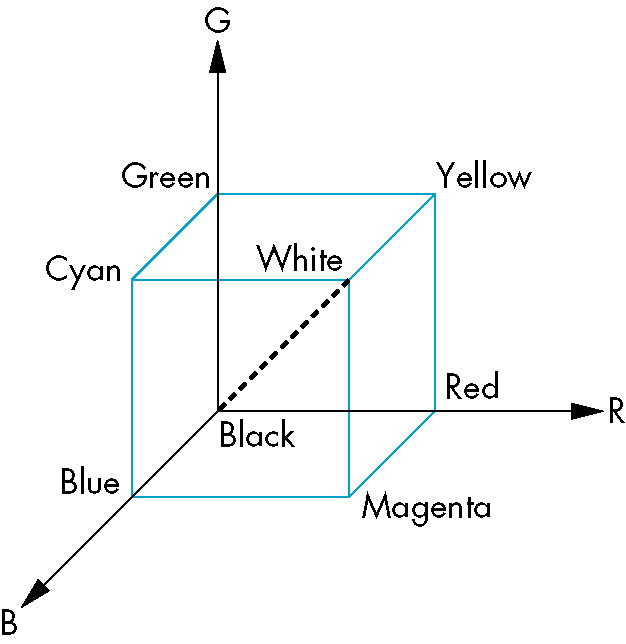

color solid/cube

					R, G, B axes

Origin at 0, opposite corner at (1, 1, 1)

0 represents absence; 1 represents saturation

Vertices correspond to primaries and complementaries

(0, 0, 0) - (1, 1, 1) diagonal represents grey shades



RGB Color Model

	Each pixel has a individual red, green, and blue components

				Separate buffer in frame buffer for each color component


Programmer specifies value of each component

					Typically using the color cube


In OpenGL
								 glColor3f(1.0, 0.0, 0.0);		 // red -- state of system changed until next color change


			Can add a fourth dimensional parameter known as alpha

					Can be used to specify opacity/transparency

								complementary terms - spectrum of value

1.0 completely opaque

0.0 completly transparent

								 glColor4f(1.0, 0.0, 0.0, 1.0);		 // opaque red

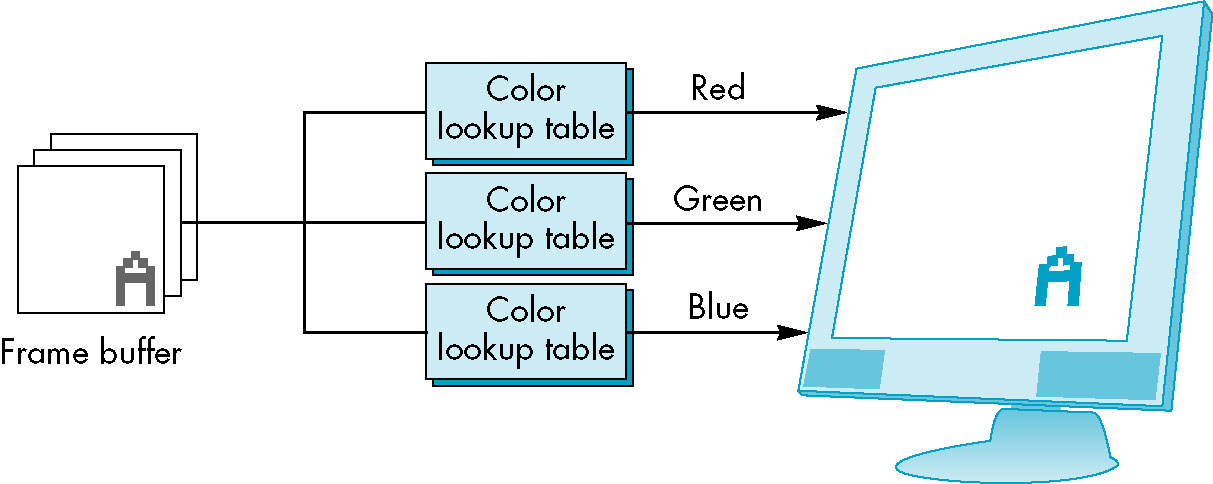

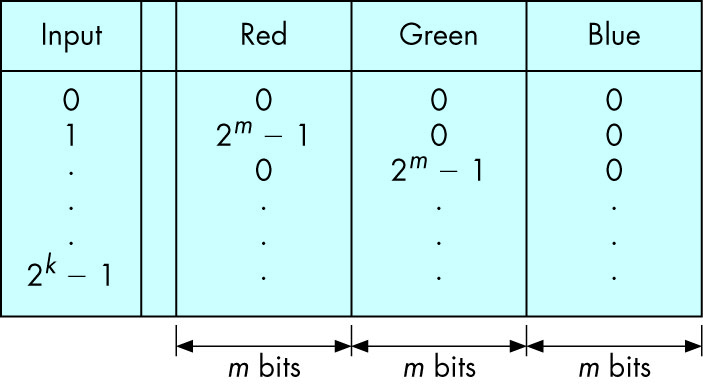

Indexed Color Model

	Used in earlier systems with limited buffer memory (particularly wrt color depth)

Dividing the buffer depth (e.g. 8 bits) into R,G,B components (2 or 3 bits per component produces
							very limited color expressivity)

Rather, use the depth as an index into a color lookup table of full (24 bit) color whose
							size is 2^depth elements





This limits the number of colors that can be used (simultaneously), but each color can be full 24 bit

With current low cost of memory and large buffers, no longer really necessary


Setting Color Attributes

		glClearColor((R, G, B, A) - Sets the clear (background) color

glColornt(...) - Sets the color

glPointSize(double size) - Sets the point size and line width (in pixels)

				Why a double? -- what does a non-integer point size mean?



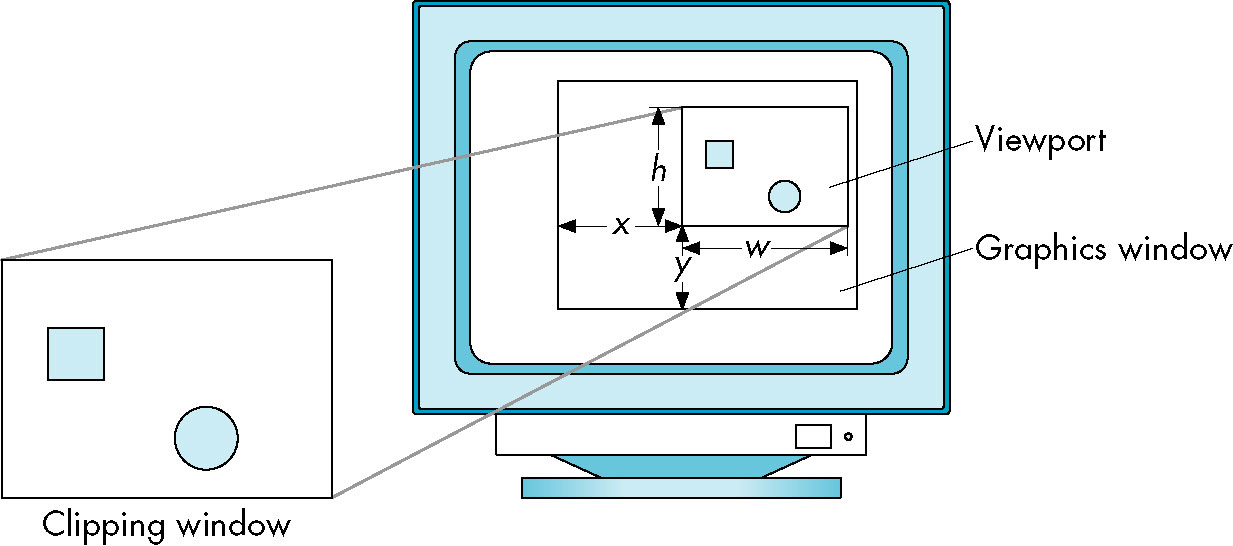

Viewing

	Camera position determines

			which objects in system are visible

how those objects appear

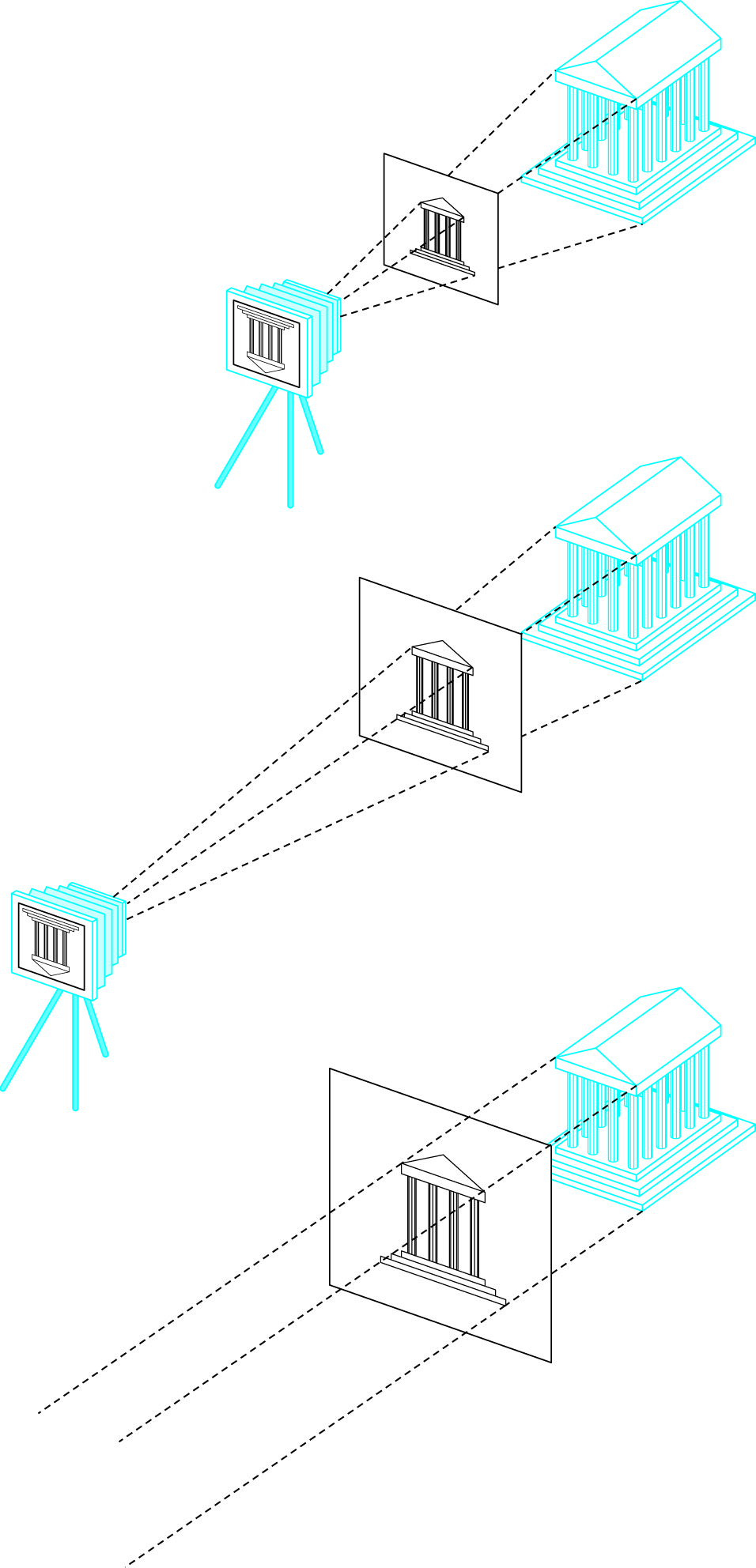

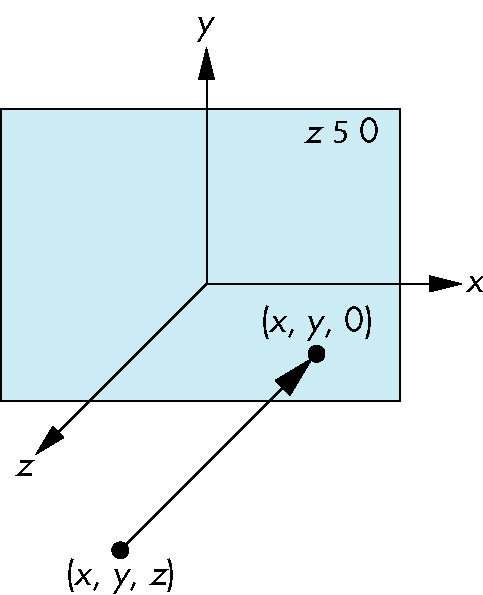

Orthographic Viewing


	Default (and simplest) in OpenGL

Inspired by synthetic camera model placed infinitely far from objects

    	Lines of projection (projectors) become parallel

Center of projection becomes direction of projection



We'll simply constrain

			our projectors to be parallel to z axis

have projection plane be placed at z = 0

Sliding the plane along the z axis, has no change on where projectors intersect the plane



We'll specify a point in the projection plane from which we

				measure a view volume

specify a direction of projection



Orthographic Viewing in OpenGL


  OpenGL defaults to a center at origin and direction facing the negative z axis



  		Points are projected from (x, y, z) to (x, y, 0)



This 'camera' can see behind itself

						Any point within the viewing volume is projected



Functions for ortho viewing

    	glOrtho(left, right, bottom, top, near, far)



					Default is a 2 x 2 x 2 cube with (-1.0, -1.0, -1.0) lower left corner behind and (1.0, 1.0, 1.0) upper right in front.


All distances are from the camera

gluOrtho2D(left, right, bottom, top) --- sets near/far to -1.0/1.0



Matrix Modes


	Tranformations on the image and view is performed by applying transformation matrices.

Some of these are applied to objects and their view (model-view matrix) and others to modify
					 the viewing volume (projection matrix)

			These both default to an intiial identity matrix


At any one point the state of the system contains which matrix is being modified by application of transformations.

				This is known as the matrix mode

The default in OpenGL is the model-view




Typical code to set a 2-dimensional viewing volume:
	glMatrixMode(GL_PROJECTION);							// Switch to the desired mode
glLoadIdentity();													// Clear back to an identitiy matrix
gluOrtho2d(0, 50, 0, 50);									// Apply the transformation
glMatrixMode(GL_MODELVIEW);								// Leave it in a known mmode



Aspect Ratio and Viewports

	aspect ratio - ration of width to height

Can get distortion if glOrtho and glutInitWindowSize don't have
					same aspect ratio.



Can either:

			ensure that window and viewing rectangle have same ration, or

Use glViewport(x, y, width, height) function to specify
							a subarea of display window (x, y are relative to the window's
							coordinate system)



Changing the viewport achieves the effect of multiple views within the same window.



Revisiting the Gasket


	Another algorithm for construction of the gasket

			Connect the midpoints of the initial triangle, forming four triangles



Repeat the process recursively on the outer triangles, for desired level of division

When terminating the recursion draw the outer triangles





	Using triangles (rather than points) allows us to fill in the areas.


Drawing a Triangle

void triangle(GLfloat *a, GLfloat *b, GLfloat *c) {
   glVertex2fv(a);
   glVertex2fv(b);
   glVertex2fv(c);
}

Notes:

	A single  glBegin(GL_TRIANGLE) is done once (elsewhere)

Each time a third vertex is specified, a triangle is created


Splitting/Dividing a Triangle

void divide_triangle(GLfloat *a, GLfloat *b, GLfloat *c, int m) {	// m controls the recursion
   GLfloat v0[2], v1[2], v2[2];
   int j;
   if(m>0) {
      for(j=0; j < 2; j++) {
         v0[j]=(a[j]+b[j])/2;
         v1[j]=(a[j]+c[j])/2;
         v2[j]=(b[j]+c[j])/2;
      }
      divide_triangle(a, v0, v1, m-1);
      divide_triangle(c, v1, v2, m-1);
      divide_triangle(b, v2, v0, m-1);
   }
   else
      triangle(a,b,c); /* draw triangle at end of recursion */
}


Moving to Three Dimensions


		Again, can use midpoint method, or recursively subdividing tetrahedra




Using midpoint method


		Four vertices to randomly choose from

Three coordinates per vertex now

Must use glOrtho

Use color to get some sense of depth

		for (GLint i = 0; i < 10000; i++) {
   int whichV = rand() % 4;
   GLfloat newPx = (px + vx[whichV]) / 2;
   GLfloat newPy = (py + vy[whichV]) / 2;
   GLfloat newPz = (pz + vz[whichV]) / 2;
   glColor3f (newPx, newPy, newPz);
   glVertex3f(newPx, newPy, newPz);
   px = newPx;
   py = newPy;
   pz = newPz;
}

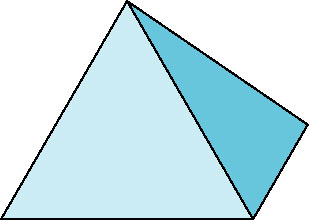

Subdividing Tetrahedra



		Six midpoints

Recursivly subdivide four outer tetrahedra
		 		void divide_tetra(GLfloat *a, GLfloat *b, GLfloat *c, GLfloat *d, int m) {

   GLfloat v0[3], v1[3], v2[3], v3[3], v4[3], v5[3];
   int j;
   if(m>0) {
      for(j=0; j<3; j++) {
         v0[j]=(a[j]+b[j])/2;
         v1[j]=(a[j]+c[j])/2;
         v2[j]=(a[j]+d[j])/2;
         v3[j]=(b[j]+c[j])/2;
         v4[j]=(c[j]+d[j])/2;
         v5[j]=(b[j]+d[j])/2;
      }

      divide_tetra(a, v0, v1, v2, m-1);
      divide_tetra(v0, b, v3, v5, m-1);
      divide_tetra(v1, v3, c, v4, m-1);
      divide_tetra(v2, v4, v5, d, m-1);
   }
   else
      tetra(a, b, c, d); /* draw triangle at end of recursion */
}


When at end of recursion, draw tetrahedron

				Draw four triangle faces using different color per face

			void tetra( GLfloat *a, GLfloat *b, GLfloat *c, GLfloat *d) {
    glColor3f(1, 0, 0);
    triangle(a, b, c);
    glColor3f(0, 1, 0);
    triangle(a, c, d);
    glColor3f(0, 0, 1);
    triangle(a, d, b);
    glColor3f(1, 0, 1);
    triangle(b, d, c);
}

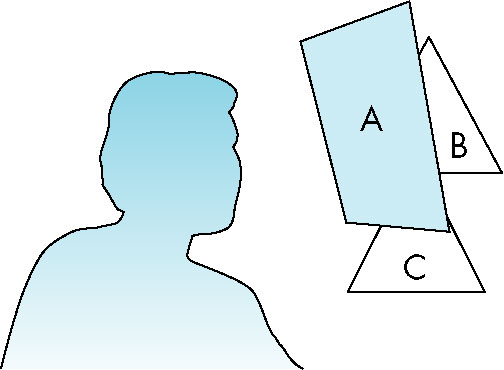

Want to perform hidden surface removal



				Actually want OpenGL to do it

Must:

							Specify we want to use a z or depth buffer (part of the frame buffer)
							   glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB | GLUT_DEPTH);   //  typically in main


Enable z buffer algorithm
						     glEnable(GL_DEPTH_TEST);   // main or init


Clear z buffer upon redisplay
						     glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);













Code for Chapter 2

GL_POINTS	Vertices form individual points
GL_LINES	Vertices form pairwise line segments
GL_LINE_STRIP	Adjacent vertices are connected (polyline)
GL_LINE_LOOP	Same as LINE_STRIP, but sequence is closed-- i.e., last and first vertices are connected

i	integer
f	float
d	double

CISC 3620 Computer Graphics Chapter 2

Two-D Applications

A First OpenGL Program - The Sierpinski Gasket

Moving to an Actual Implementation

A C++/OpenGL Implementation of the Above

A 'Thirty-Second' Overview of the Above

Vertices

The OpenGL GLVertex Function

Specifying an Object as a Sequence of Vertices

Basic Structure of an OpenGL Program

The Graphics Systems vs User Interaction

The Display Callback Function

Coordinate Systems

OpenGL API

(Finite) State Machines

OpenGL Interface

Primitives

Approximating a Sphere

Text

Curved Objects

Attributes

Viewing

Aspect Ratio and Viewports

Revisiting the Gasket

Moving to Three Dimensions

Code for Chapter 2

CISC 3620
Computer Graphics
Chapter 2

The OpenGL `GLVertex` Function
